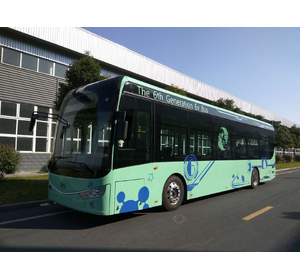

ANKAI HFF6129G03EV6 Електробус 12м

Bus Parameter

Overall dimension(mm)

12000×2550×3360

Front/rear overhang(mm)

2570/3330

Approaching/departure angle(º)

7°/7°

Curb weight(kg)

13500

Wheelbase(mm)

6100

Max weight(kg)

18000

Track (front/rear )(mm)

2080/1860

Max Speed(km/h)

70

Seat capacity

40+1(2 doors version) 31+1(3 doors version)

Chassis Configuration

Motor

Motor model

ZF AVE 130(in-wheel motor)

Battery

423 KWH （CATL)

Axle

Front axle

ZF RL85EC

Rear axle

ZF AVE 130

Braking System

ZF (All Disc Brake)

ABS/EBS

WABCO ABS/EBS

Suspension System

Air suspension with ECAS

CAN Equipment

CAN BUS(ACTIA)

Steering System

8098 power steering

Tyre

275/70R22.5 6 tyres,stainless steel wheel cover

Body Configuration

Body Frame

Monocoque

Electrocoating system

Fully 100% electrocoating for whole body

Interior

Luxury  inner trim

Indenpndent fuel heater

Websto
Websto independent fuel heater + 7 raditor

A/C

Roof mounted type 32000kcal/h

Electronic destination board

Front,side and rear destination board,


Seat

Driver seat

Grammer

Passenger seat

31 units or 40units

Driver partition board

1 partition board between driver zone

Floor

Chinese floor cover

Handrail

Yes

Windows

Front windshield

Laminated glass, with sunvisor

Side window

Laminated glass

Passenger door

front、middle and rear passenger outer swing doors

Audio system

Hard disc player

Lighting system

Through type light

Reverse monitor

Yes, colorful reverse monitor

Monitor system

3 camera in bus, 1 camera on windsheield

Rear-view mirror

Electric adjustment

Ramp for disabled

Manual folding ramp for disabled

Painting

Chinese

Roof hatch

2 roof hatchs

Fire extinguisher

2*5kg fire extinguisher inside the bus, automatic extinguisher for the engine cabin


Other equipments

safety hammers, Interior mirror, digital clock, sunshield, defroster, first-aid kit, safety triangle,area  for wheel chair
